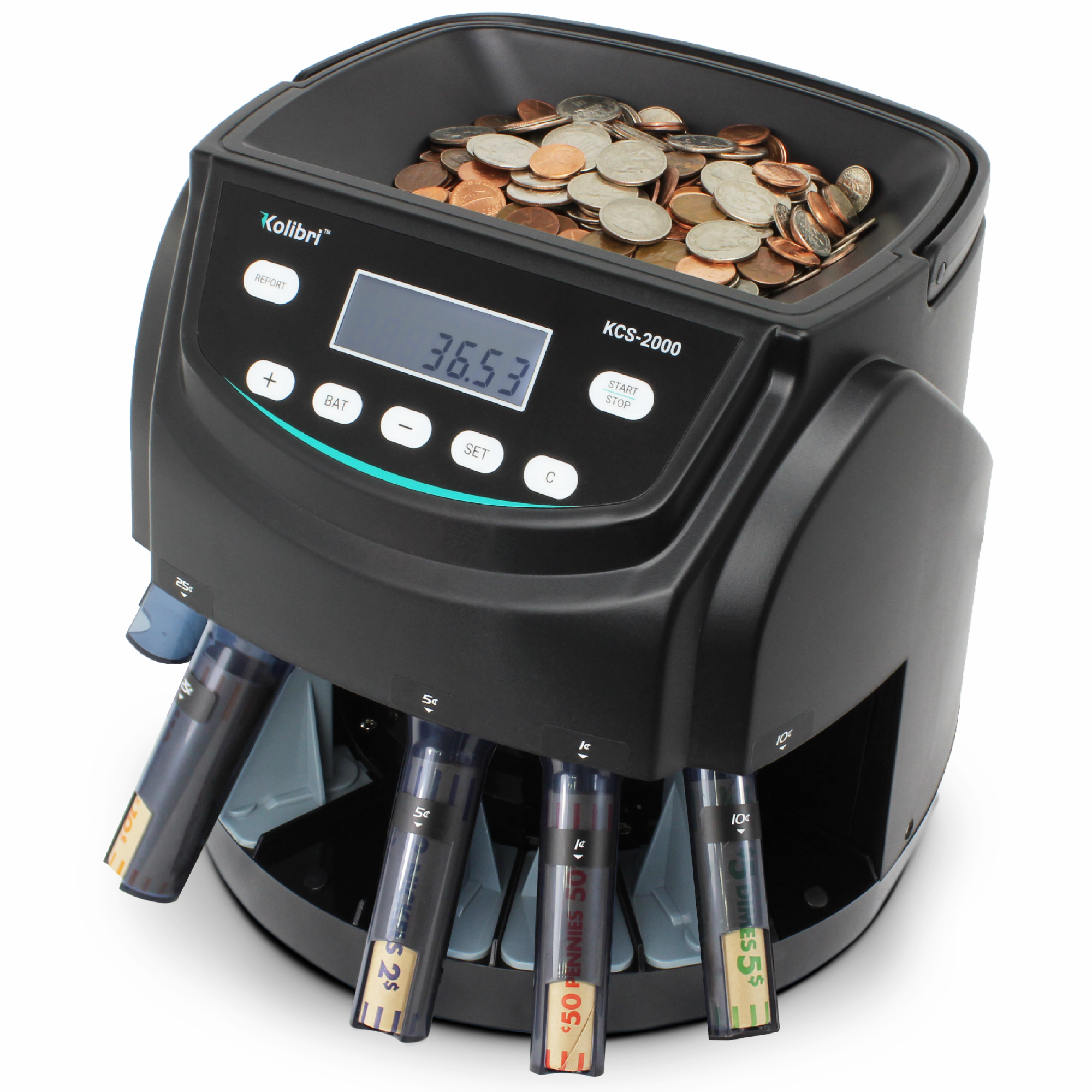

The KCS-2000 always operates in a batching mode by default. To enable simple counting, all batch quantities need to be set to zero. To set batch quantities to zero, press and hold the “-” button for approximately three seconds until “C” is displayed on the left of the LED display.

• Before loading the hopper, make sure there are no uncounted coins remaining in it from the previous count.
• To count coins, place them into the hopper and press the “START/STOP” button.
• The KCS-2000 will start counting and will automatically sort all coins into the appropriate coin trays.
• The machine will automatically stop when all coins in the hopper are counted, or if the batch quantity for any coin denomination is reached.
• To stop the machine, press the “START/STOP” button.
• To resume counting, press the “START/STOP” button.
• When a coin tray becomes full, stop the machine and empty the tray to ensure correct machine operation. Stopping the machine will not alter or reset the count. You can continue counting by pressing the “START/STOP” button.
• As it counts, the KCS-2000 will automatically display the total value of counted coins on the screen.
• To view the v alue of coins counted for each denomination press the “REPORT” button. The denomination will appear on the left and value of coins counted on the right part of the screen. To display the number of coins counted, press the “+” button.

While in the report mode, pressing the “+” button will switch the display between value of coins counted or number of coins counted. The KCS-2000 will remember the last setting chosen for the report display.

• To reset the coin count before starting a new batch, press the “C” button.

Importance:
Regular cleaning prevents errors (E1–E9, EA) and extends the unit's lifespan. Perform weekly maintenance.

Items Needed:

• Compressed air
• Cleaning cotton swab (or microfiber cloth)
• Isopropyl alcohol
• Phillips screwdriver

Steps:

1. Preparation:

Turn off the power and unplug the unit.

Remove three screws at the bottom edge of the housing using a Phillips screwdriver. Lift housing carefully; do not pull or twist attached cables.

2. Count Sensor Cleaning (E1–E8 Errors):

Locate counting sensors near the coin discharge chutes.

Clean sensor ends with a moistened cotton swab or microfiber cloth.

Check sensor alignment and gently straighten if necessary.

3. Run Sensor Cleaning (E9 Error):

Locate the run sensor pair.

Gently clean with a cotton swab and check alignment.

4. EA Error Troubleshooting:

Inspect the interior for debris blocking the coin platter. Remove obstructions carefully.

5. Reassembly:

Reinstall the housing, aligning it with the AC power cord. Avoid forcing it.

Secure with screws. Ensure all parts are dry before use.

Additional Help:
If cleaning doesn’t resolve the issue, contact Kolibri Support with your model and serial number (found under the unit).
